Guarranteed uptime for Critical performance - long usge period between mainteance.
Quick and Easy service results in more productive hours.
Unit Fuel injectors ensures ultra fine fuel atomisation and controller rapid combustion over a varied range of load.
Commonality of components for 4000 series range ( 750 kVA- 2250 kVA).
Designed for low cost of owenership, simple maintenace and lower downtime over a range of load.
| Prime Power Output |
Engine Manufacturer |
Engine Model |
Gross Engine Power |
Engine Cooling System |
No.of Cylinder and Position |
Displacement | Aspiration |
|---|---|---|---|---|---|---|---|
| 1850 kVA / 1480 kW |
Perkins | 4016-61TRG1 | 1648 kWm | Liquid Cooled | 16, 60◦ Vee | 61.1 Litre | Quad Turbocharged air to water charge cooled |
| Bore x Stroke | Recommended Fuel |
Combustion System |
Compression Ratio |
Total Lubricating Capacity |
Total Coolant Capacity |
Specific Fuel Consumption (g/ kWh) |
|
| 160 x 190 mm | HSD | Direct Injection | 13:01 | 237.2 Litre | 385 Litre | 100%Load : 194 75 % Load : 192 50% Load : 192 |
|
| Alternator Rated Power |
Rated Voltage (L-L) |
Frequency | Rated Speed |
Rated Current |
Power Factor |
Poles | Phase |
| 1850 kVA | 415 V | 50 Hz | 1500 rpm | 2573.7 amp | 0.8 (lagging) | 4 | 3 |
| Insulation Class | Temperature Rise Limit |
Protection | Voltage Regulation |
Over Load Capability |
Excitation System |
||
| Class H | Class H | IP 23 | ± 1% | 10% for 1 hour in every 12 hours operation |
Brushless |
| Prime Power Output | 1850 kVA/ 1480 kW |
|---|---|

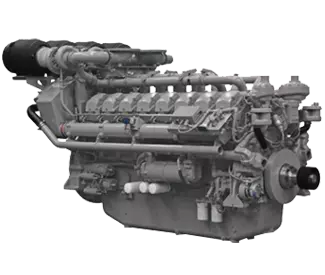

| Engine Manufacturer | Perkins |
| Engine Model | 4016-61TRG1 |
| Gross Engine Power | 1648 kWm |
| Engine Cooling System | Liquid Cooled |
| No.of Cylinder and Position | 16, 60◦ Vee |
| Displacement | 61.1 Litre |
| Aspiration | Quad Turbocharged air to air charge cooled |
| Bore x Stroke | 160 x 190 mm |
| Recommended Fuel | HSD |
| Combustion System | Direct Injection |
| Compression Ratio | 13:01 |
| Total Lubricating Capacity | 237.2 Litre |
| Total Coolant Capacity | 385 Litre |
| Specific Fuel Consumption (g/kWh) | 100%Load : 194 75 % Load : 192 50% Load : 192 |
| Alternator Rated Power | 1850 kVA |
| Rated Voltage (L-L) | 415 V |
| Frequency | 50 Hz |
| Rated Speed | 1500 rpm |
| Rated Current | 2573.7 amp |
| Power Factor | 0.8 (lagging) |
| Poles | 4 |
| Phase | 3 |
| Insulation Class | Class H |
| Temperature Rise Limit | Class H |
| Protection | IP 23 |
| Voltage Regulation | ± 1% |
| Over Load Capability | 10% for 1 hour in every 12 hours operation |
| Excitation System | Brushless |
