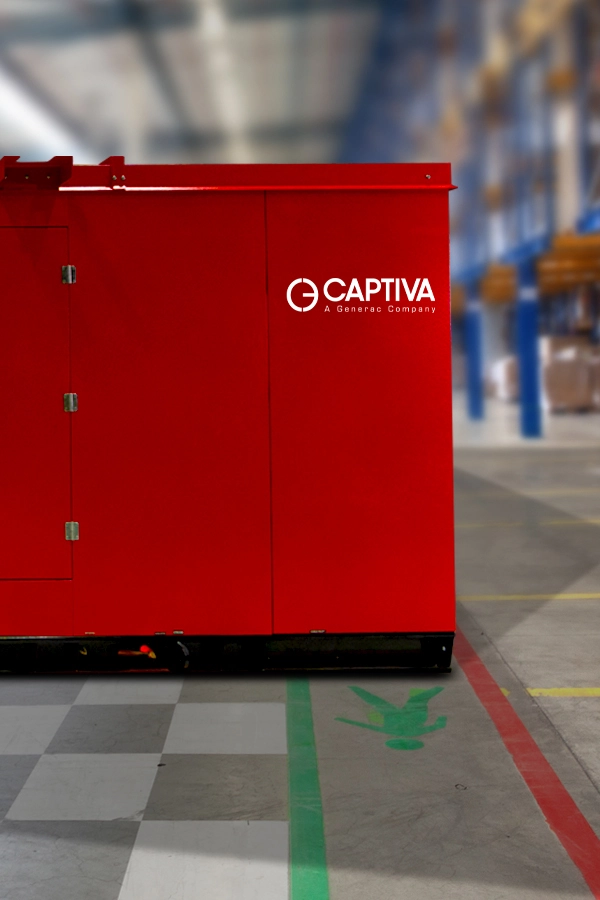

Fitted with integral six-sided acoustic enclosure..
Designed and tested for ideal performance..
Engines are designed for exceptional power to weight ratio, high reliability and lowest cost of ownership..
Equipped with full electronic control for advanced performance monitoring..
Mechanically actuated electronically controlled unit fuel injectors to achieve excellent fuel efficiency.
| 60 Hz | Net Engine Output | Typical Generator Set Output | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Litres | Model | Baseload | Prime | Standby | Baseload | Prime | Standby | 1800/1500 rev/min switchable |
|||||||||||
| kWm | kWm | kWm |
|
|
|
||||||||||||||
| 1800 rpm (14 kWe to 1504 kWe) | |||||||||||||||||||
| 1.5 | 403A-15G2 | - | 16 | 18 |
|
|
|
|
|||||||||||
| 3.3 | 1103A-33G | - | 32 | 35 |
|
|
|
|
|||||||||||
| 1103A-33TG1 | - | 49 | 54 |
|
|
|
|
||||||||||||
| 1103A-33TG2 | - | 61 | 68 |
|
|
|
|
||||||||||||
| 4.4 | 1104A-44TG1 | - | 69 | 76 |
|
|
|
|
|||||||||||
| 1104A-44TG2 | - | 82 | 90 |
|
|
|
|
||||||||||||
| 7.0 | 1106A-70TG1 | - | 134 | 148 |
|
|
|
|
|||||||||||
| 1106A-70TAG2 | - | 147 | 164 |
|
|
|
|
||||||||||||
| 1106A-70TAG3 | - | 173 | 192 |
|
|
|
|
||||||||||||
| 1206A-E70TTAG1 | - | 202 | 224 |
|
|
|
|
||||||||||||
| 8.8 | 1506A-E88TAG1 | - | 216 | 237 |
|
|
|
|
|||||||||||
| 1506A-E88TAG2 | - | 216 | 237 |
|
|
|
|
||||||||||||
| 1506A-E88TAG3 | - | 252 | 279 |
|
|
|
|
||||||||||||
| 1506A-E88TAG4 | - | 278 | 306 |
|
|
|
|
||||||||||||
| 1506A-E88TAG5 | - | 306 | 339 |
|
|
|
|
||||||||||||
| 9.3 | 1706A-E93TAG1 | - | 311 | 343 |
|
|
|
|
|||||||||||
| 12.5 | 2206A-E13TAG5 | - | 349 | 381 |
|
|
|
|
|||||||||||
| 2206A-E13TAG6 | - | 381 | 435 |
|
|
|
|
||||||||||||
| 15.2 | 2506A-E15TAG3 | - | 446 | 490 |
|
|
|
|
|||||||||||
| 2506A-E15TAG4 | - | 495 | 543 |
|
|
|
|
||||||||||||
| 18.1 | 2806A-E18TAG1A | - | 543 | 598 |
|
|
|
|
|||||||||||
| 2806C-E18TAG1A | - | 543 | 598 |
|
|
|
|
||||||||||||
| 2806A-E18TAG3 | - | 592 | 652 |
|
|
|
|
||||||||||||
| 2806A-E18TTAG5 | - | 675 | 748 |
|
|
|
|
||||||||||||
| 2806A-E18TTAG6 | - | 685 | 754 |
|
|
|
|
||||||||||||
| 2806A-E18TTAG7 | - | 716 | 790 |
|
|
|
|
||||||||||||
| 23.0 | 4006-23TAG2A | 511 | 638 | 702 |
|
|
|
|
|||||||||||
| 4006-23TAG3A | 570 | 715 | 795 |
|
|
|
|
||||||||||||
| 4006-23TAG4 | 607 | 761 | 842 |
|
|
|
|
||||||||||||
| 30.0 | 4008TAG1 | 610 | 763 | 843 |
|
|
|
|
|||||||||||
| 4008TAG2 | 687 | 842 | 948 |
|
|
|
|
||||||||||||
| 46.0 | 4012-46TWG2A | 833 | 1055 | 1166 |
|
|
|
|
|||||||||||
| 4012-46TWG3A | 909 | 1149 | 1263 |
|
|
|
|
||||||||||||
| 4012-46TAG1A | 914 | 1153 | 1267 |
|
|
|
|
||||||||||||
| 4012-46TWG4A | - | 1254 | 1342 |
|
|
|
|
||||||||||||
| 4012-46TAG2A | 1005 | 1267 | 1395 |
|
|
|
|
||||||||||||
| 4012-46TAG3A | 1200 | 1440 | 1583 |
|
|
|
|
||||||||||||
Switchable engines must be requested at point of order, please consult with your local Perkins representative
Can be switched between 1500 and 1800 rpm
All ratings are rounded to the nearest whole number and are for guidance only. Please refer to the technical data or specification sheet for accurate powers.
Electrical output is based on assumed alternator efficiency and is for guidance only.
kVA figures are calculated using a typical power factor of 0.8.
Perkins conditions of sale apply.
All ratings data based on operation under ISO 8528-1, ISO 3046, DIN6271 conditions using typical fan sizes and drive ratios. Performance tolerance quoted by Perkins is ± 5%.
Baseload Power = Power available for continuous full load operation. An overload of 10% permitted for one hour in every twelve hours of operation. Please Note: No overload is permitted on 4000 Series.
Prime Power = Power available at variable load in lieu of main power network (please refer to the engine Technical Data Sheets for engine load factors). An overload of 10% permitted for one hour in every twelve hours of operation.
Standby Power = Power available at a variable load in the event of a main power network failure up to a maximum of 500 hours per year. No overload is permitted.
