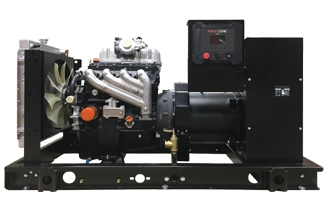

SG 40

Gas Generator Set

- Clean fuel, Cleaner Environment

- Lower noise, Suitable for Every Applications

SG 40 Model Details

Key features

Proven robust performance for longer running hour.

Least impacted by the ambient conditions, humidity and altitude.

Compact design suitable for various auxiliary load applications.

Complies NFPA-110 norms of starting a taking entire load in less than 10 seconds* (*conditions applied).

Conform to G2 governing class of steady state and transient response and frequency fluctuation limit.

Standby Power
Output
Engine
Manufacturer
Engine
Model
Gross Engine
Power
Engine Cooling
System
No.of Cylinder and Position Displacement Aspiration
50 kVA/ 40 kW Generac G4.5L 54 bkW Liquid Cooled 4, In-line 4.5 Litres Naturally aspirated,
air to air cooled
Bore x Stroke Recommended
Fuel
Combustion
System
Compression
Ratio
Total Lubricating
Capacity
Total Coolant
Capacity
Fuel Consumption (m3/hr)
114.3 x 107.95 mm Pipe Natural Gas Spark ignition 9.94:1 20 Litres 11.4 Litres 100% Load : 12.9
75 % Load : 7.9
50% Load : 8.0

Alternator
Rated Power
Rated
Voltage (L-L)
Frequency Rated
Speed
Rated
Current
Power
Factor
Poles Phase
60 kVA / 48 kW 415 V 50 Hz 1500 rpm 84 amp 0.8 (lagging) 4 3
Insulation Class Temperature
Rise Limit
Protection Voltage
Regulation
Over Load
Capability
Excitation
System

Class H Class H IP 23 ± 1% 10% for 1 hour in every 12 hours operation Brushless
Standby Power Output 50 kVA/ 40 kW
Engine Manufacturer Generac
Engine Model G4.5L
Gross Engine Power 54 bkW
Engine Cooling System Liquid Cooled
No.of Cylinder and Position 4, In-line
Displacement 4.5 Litres
Aspiration Naturally Aspirated, air to air cooled
Bore x Stroke 114.3 x 107.95 mm
Recommended Fuel Pipe Natural Gas
Combustion System Spark ignition
Compression Ratio 9.94:1
Total Lubricating Capacity 20 Litres
Total Coolant Capacity 11.4 Litres
Fuel Consumption (m3/hr) 100% Load : 12.9
75 % Load : 7.9
50% Load : 8.0
Alternator Rated Power 60 kVA / 48 kW
Rated Voltage (L-L) 415 V
Frequency 50 Hz
Rated Speed 1500 rpm
Rated Current 84 amp
Power Factor 0.8 (lagging)
Poles 4
Phase 3
Insulation Class Class H
Temperature Rise Limit Class H
Protection IP 23
Voltage Regulation ± 1%
Over Load Capability 10% for 1 hour in every 12 hours operation
Excitation System Brushless
