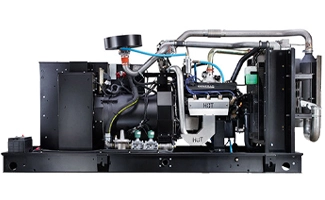

SG 285

Gas Generator Set

- Clean fuel, Cleaner Environment

- Lower noise, Suitable for Every Applications

SG 285 Model Details

Key features

Most selling Gas Genset across the globe.

Electronic Controller for full time engine control, complete engine management, diagonistic and communication capability.

Complies NFPA-110 norms of starting a taking entire load in less than 10 seconds*(*conditions applied).

Conform to G2 governing class of steady state and transient response and frequency fluctuation limit.

Lowest owning & Operating cost in this category.

Prime Power
Output
Engine
Manufacturer
Engine
Model
Gross Engine
Power
Engine Cooling
System
No.of Cylinder and Position Displacement Aspiration
285 kVA/ 228 kW Generac G14.2L 276 bkW Liquid Cooled 6, In-line 14.2 Litres Turbocharged,
air to air cooled
Bore x Stroke Recommended
Fuel
Combustion
System
Compression
Ratio
Total Lubricating
Capacity
Total Coolant
Capacity
Fuel Consumption (m3/hr)
135 x 165 mm Pipe Natural Gas Spark Ignition 9.5:1 34.3 Litres 54.9 Litres 100% Load : 70.1
75 % Load : 56.2
50% Load : 39.4

Alternator
Rated Power
Rated
Voltage (L-L)
Frequency Rated
Speed
Rated
Current
Power
Factor
Poles Phase
320 kVA / 256 kW 415 V 50 Hz 1500 rpm 445.2 amp 0.8 (lagging) 4 3
Insulation Class Temperature
Rise Limit
Protection Voltage
Regulation
Over Load
Capability
Excitation
System

Class H Class H IP 23 ± 1% 10% for 1 hour in
every 12 hours
operation
Brushless
Prime Power Output 285 kVA/ 228 kW
Engine Manufacturer Generac
Engine Model G14.2L
Gross Engine Power 276 bkW
Engine Cooling System Liquid Cooled
No.of Cylinder and Position 6, In-line
Displacement 14.2 Litres
Aspiration Turbocharged, air to air cooled
Bore x Stroke 135 x 165 mm
Recommended Fuel Pipe Natural Gas
Combustion System Spark ignition
Compression Ratio 9.5:1
Total Lubricating Capacity 34.3 Litres
Total Coolant Capacity 54.9 Litres
Fuel Consumption (m3/hr) 100% Load : 70.1
75 % Load : 56.2
50% Load : 39.4
Alternator Rated Power 320 kVA / 256 kW
Rated Voltage (L-L) 415 V
Frequency 50 Hz
Rated Speed 1500 rpm
Rated Current 445.2 amp
Power Factor 0.8 (lagging)
Poles 4
Phase 3
Insulation Class Class H
Temperature Rise Limit Class H
Protection IP 23
Voltage Regulation ± 1%
Over Load Capability 10% for 1 hour in every 12 hours operation
Excitation System Brushless
